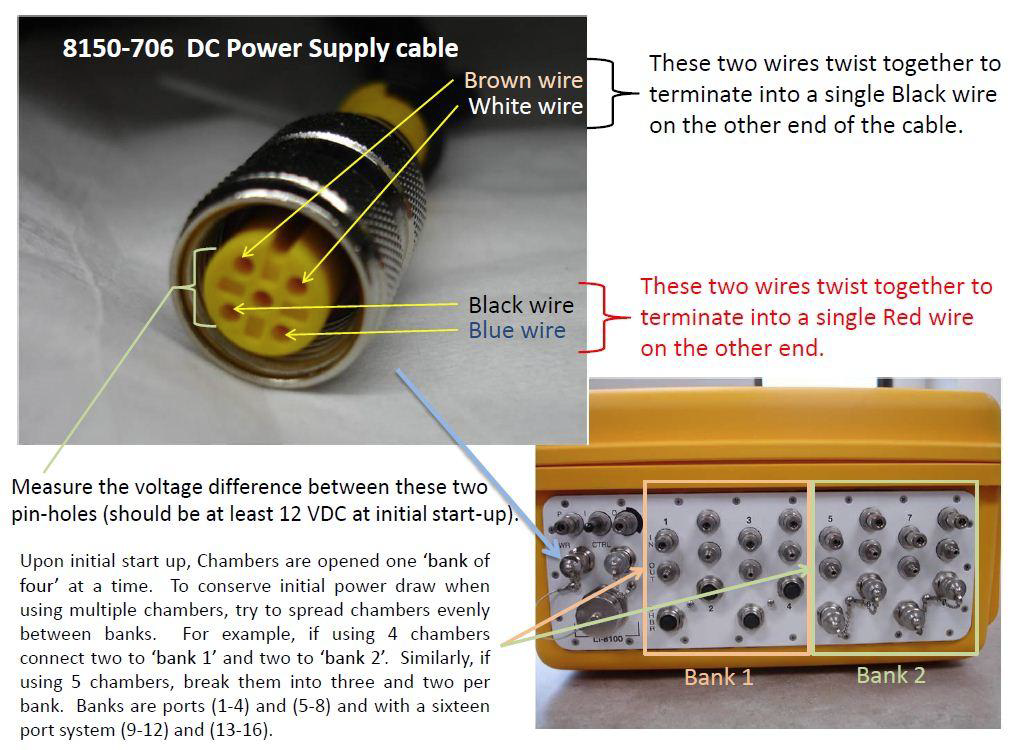

Measuring Incoming Voltage at the LI-8150 Multiplexer

Upon initial start up, chambers are opened one bank of four at a time. To conserve initial power draw when using multiple chambers, try to spread chambers evenly between banks. For example, if using 4 chambers connect two to 'bank 1' and two to 'bank 2'. Similarly, if using 5 chambers, break them into three and two per bank. Banks are ports (1-4) and (5-8) and with a sixteen port system (9-12) and (13-16).
